`{idealista18}` repo and `{ineAtlas}` package

La crisis de la vivienda en España. The housing crisis in Spain

Housing crisis in Spain

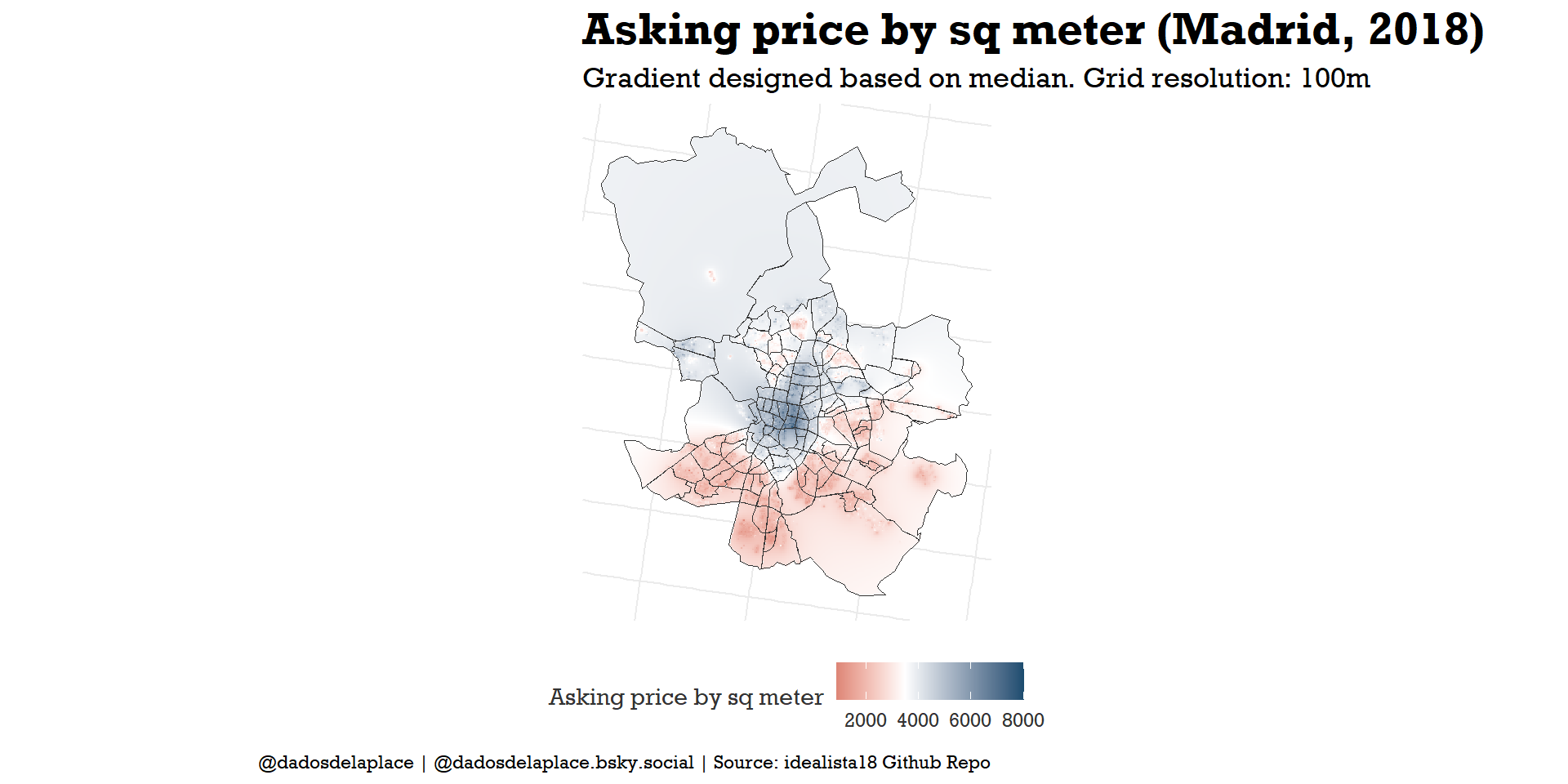

[inverse distance weighted interpolation]

idealista18 repo

{idealista18} es un conjunto de datos abiertos de anuncios inmobiliarios de 2018 en España, correspondientes a las tres ciudades más grandes: Madrid (n = 94 815), Barcelona (n = 61 486) y Valencia (n = 33 622).

{idealista18} is a set of open geo-referenced dataset of 2018 real estate listings in Spain for the three largest cities in Spain: Madrid (n = 94 815 observations), Barcelona (n = 61 486), and Valencia (n = 33 622).

devtools::install_github("paezha/idealista18")
library(idealista18)

idealista18 repo

Dwelling listings: características de cada vivienda publicada como anuncio en el sitio web de Idealista.
Polígonos: delimitaciones geográficas de los distritos
POIs: un conjunto de puntos de interés en cada ciudad (coordenadas del centro de la ciudad, coordenadas de estaciones de metro, etc).

Dwelling listings: characteristics for each dwelling published on the idealista website as an ad.
Neighboorhood polygons
Points of Interest (POIs): a set of Points of Interest in each city (coordinates of the city center, coordinates of the metro stations, etc).

Madrid_Sale
Barcelona_Sale
Valencia_Sale

Madrid_Polygons
Barcelona_Polygons
Valencia_Polygons

Madrid_POIS
Barcelona_POIS
Valencia_POIS

idealista18 repo

Los datos de viviendas están en formato sf pero podemos obtenerlos como tabla eliminando su geometría (paquete {sf})

Dwelling data is provided as an sf object but we can obtain it as a tabular data just removing its geometry ({sf} package)

# install.packages("sf")
data <-
  Madrid_Sale |>
  sf::st_drop_geometry() |>
  as_tibble()
data

# A tibble: 94,815 × 41
   ASSETID         PERIOD  PRICE UNITPRICE CONSTRUCTEDAREA ROOMNUMBER BATHNUMBER
   <fct>            <int>  <dbl>     <dbl>           <int>      <int>      <int>
 1 A1501913683140… 201803 1.26e5     2681.              47          1          1
 2 A6677225905472… 201803 2.35e5     4352.              54          1          1
 3 A1334197974861… 201803 3.73e5     4973.              75          2          1
 4 A4775182175615… 201803 2.84e5     5917.              48          1          1
 5 A2492087730711… 201803 2.28e5     4560               50          0          1
 6 A1837242815468… 201803 4.98e5     3921.             127          3          2
 7 A4705946410795… 201803 2.25e5     6429.              35          0          1
 8 A8243762537477… 201803 3.65e5     3650              100          2          1
 9 A9587449507628… 201803 4.25e5     6071.              70          1          1
10 A3694300518337… 201803 3.19e6     8853.             360          4          3
# ℹ 94,805 more rows
# ℹ 34 more variables: HASTERRACE <int>, HASLIFT <int>,
#   HASAIRCONDITIONING <int>, AMENITYID <int>, HASPARKINGSPACE <int>,
#   ISPARKINGSPACEINCLUDEDINPRICE <int>, PARKINGSPACEPRICE <int>,
#   HASNORTHORIENTATION <int>, HASSOUTHORIENTATION <int>,
#   HASEASTORIENTATION <int>, HASWESTORIENTATION <int>, HASBOXROOM <int>,
#   HASWARDROBE <int>, HASSWIMMINGPOOL <int>, HASDOORMAN <int>, …

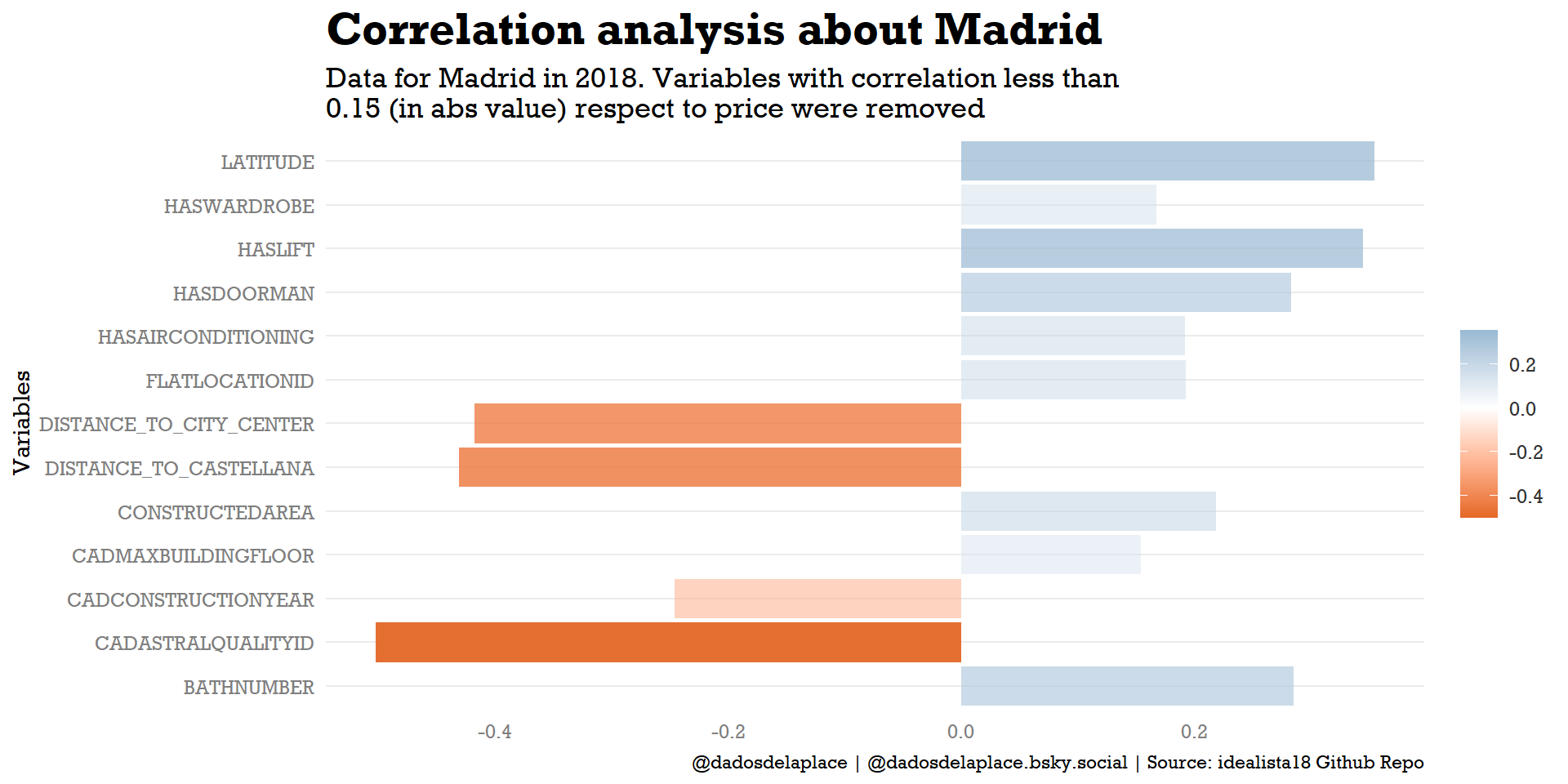

`{corrr}` package

¿Qué correla más con el precio?

What correlates the most with the price?

Code

library(idealista18)
library(ggcorrplot)

cor_madrid <-
  Madrid_Sale |>
  sf::st_drop_geometry() |>
  as_tibble() |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  filter(term != "UNITPRICE") |>
  rename(correlation = UNITPRICE) |>
  filter(abs(correlation) > 0.15)

ggplot(cor_madrid) +
  geom_col(aes(x = correlation, y = term, fill = correlation,
               alpha = abs(correlation))) +
  scale_fill_gradient2(low = "#E46726", mid = "white", high = "#6D9EC1",
                       midpoint = 0) +
  scale_alpha_continuous(range = c(0.45, 0.95)) +
  guides(alpha = "none") +
  labs(x = "Correlation", y = "Variables", fill = "Correlation",
       title = "Correlation analysis about Madrid",
       subtitle = "Data for Madrid in 2018. Variables with correlation less than\n0.15 (in abs value) respect to price were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme_gg +
  theme(legend.position = "right")

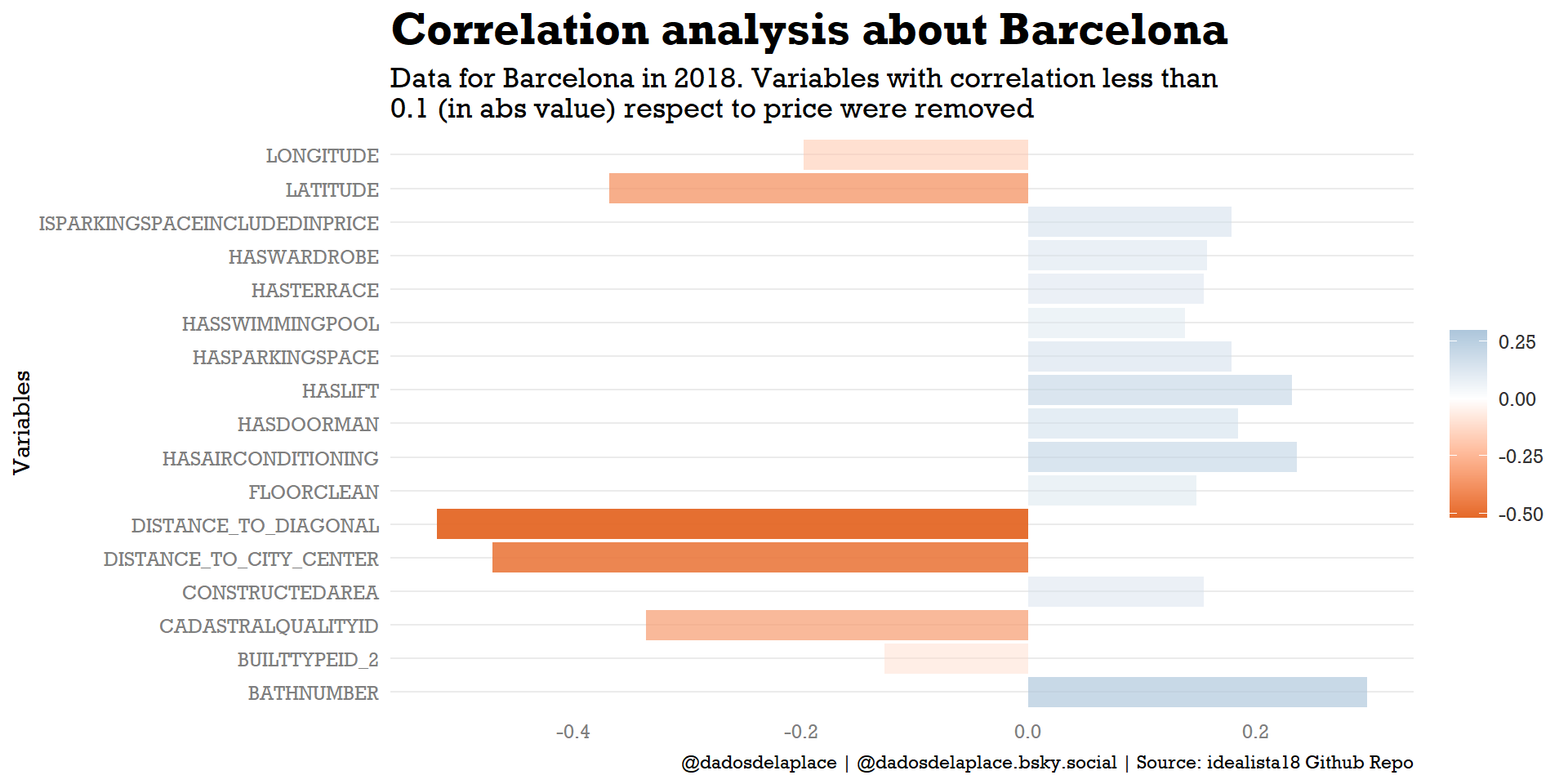

`{corrr}` package

¿Qué correla más con el precio?

What correlates the most with the price?

Code

cor_bcn <-
  Barcelona_Sale |>
  sf::st_drop_geometry() |>
  as_tibble() |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  filter(term != "UNITPRICE") |>
  rename(correlation = UNITPRICE) |>
  filter(abs(correlation) > 0.1)

ggplot(cor_bcn) +
  geom_col(aes(x = correlation, y = term, fill = correlation,
               alpha = abs(correlation))) +
  scale_fill_gradient2(low = "#E46726", mid = "white", high = "#6D9EC1",
                       midpoint = 0) +
  scale_alpha_continuous(range = c(0.45, 0.95)) +
  guides(alpha = "none") +
  labs(x = "Correlation", y = "Variables", fill = "Correlation",
       title = "Correlation analysis about Barcelona",
       subtitle = "Data for Barcelona in 2018. Variables with correlation less than\n0.1 (in abs value) respect to price were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme_gg +
  theme(legend.position = "right")

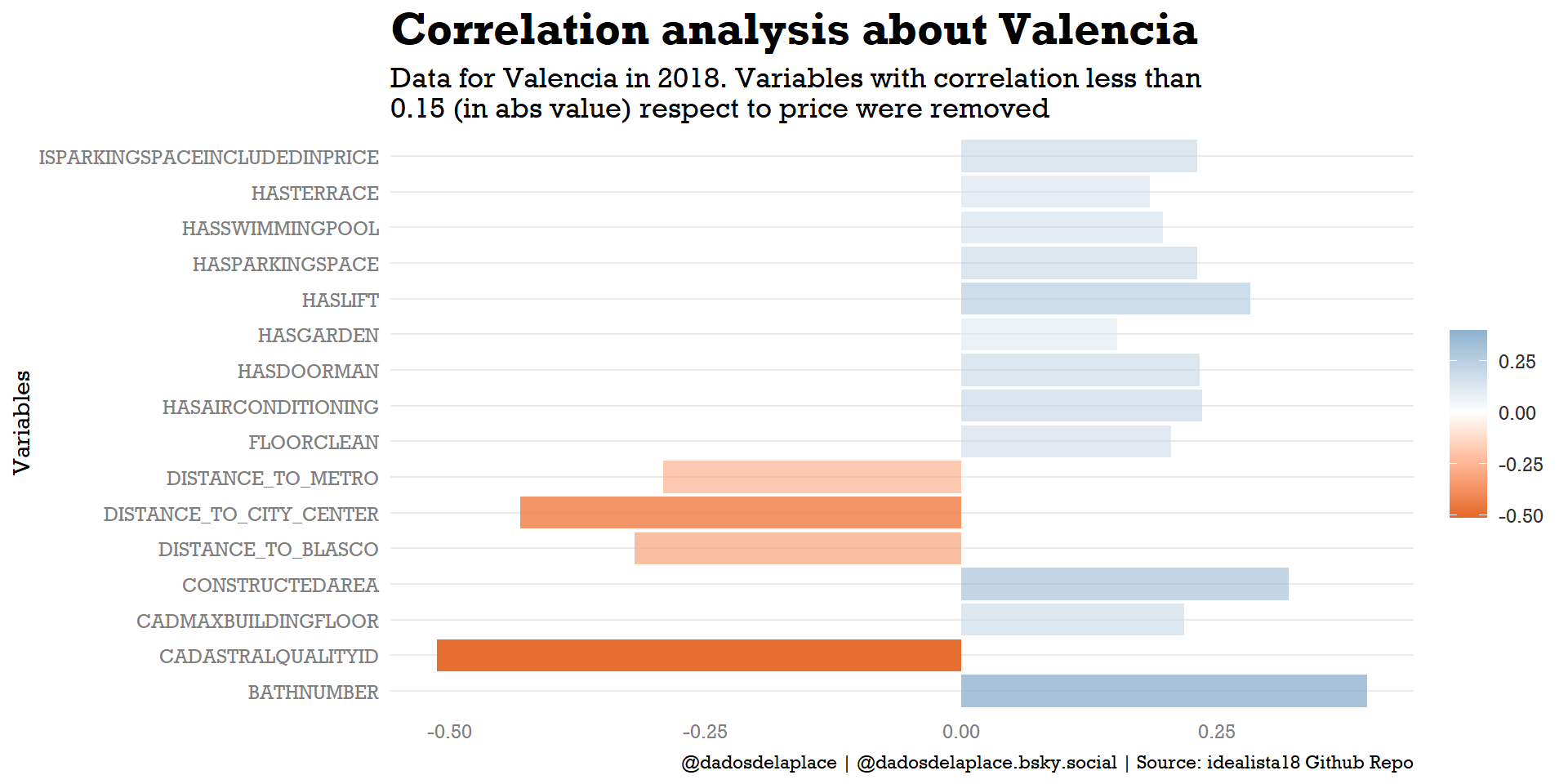

`{corrr}` package

¿Qué correla más con el precio?

What correlates the most with the price?

Code

cor_vlc <-
  Valencia_Sale |>
  sf::st_drop_geometry() |>
  as_tibble() |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  filter(term != "UNITPRICE") |>
  rename(correlation = UNITPRICE) |>
  filter(abs(correlation) > 0.15)

ggplot(cor_vlc) +
  geom_col(aes(x = correlation, y = term, fill = correlation,
               alpha = abs(correlation))) +
  scale_fill_gradient2(low = "#E46726", mid = "white", high = "#6D9EC1",
                       midpoint = 0) +
  scale_alpha_continuous(range = c(0.45, 0.95)) +
  guides(alpha = "none") +
  labs(x = "Correlation", y = "Variables", fill = "Correlation",
       title = "Correlation analysis about Valencia",
       subtitle = "Data for Valencia in 2018. Variables with correlation less than\n0.15 (in abs value) respect to price were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme_gg +
  theme(legend.position = "right")

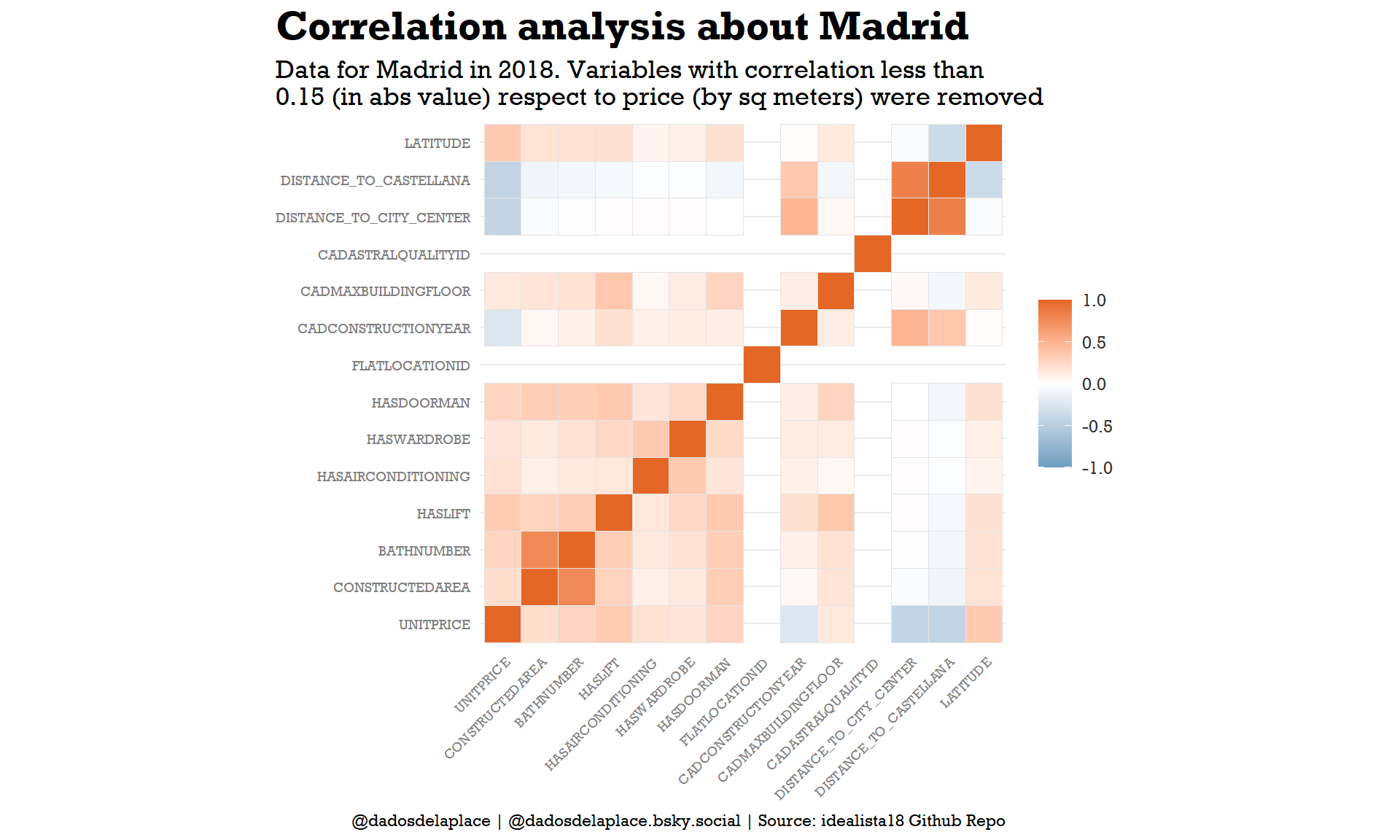

`{ggcorrplot}` package

El paquete {ggcorrplot} nos visualiza la matriz de correlaciones.

The {ggcorrplot} package visualizes the correlation matrix.

Code

data <-
  Madrid_Sale |>
  sf::st_drop_geometry() |>
  as_tibble() |>
  mutate("city" = "Madrid") |>
  bind_rows(Barcelona_Sale |>
              sf::st_drop_geometry() |>
              as_tibble() |>
              mutate("city" = "Barcelona")) |>
  bind_rows(Valencia_Sale |>
              sf::st_drop_geometry() |>
              as_tibble() |>
              mutate("city" = "Valencia"))

list_cor_var_madrid <-
  data |>
  filter(city == "Madrid") |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  drop_na(UNITPRICE) |>
  filter(abs(UNITPRICE) >= 0.15) |>
  pull(term)

gg1 <-
  ggcorrplot(data |>
               filter(city == "Madrid") |>
               select(UNITPRICE, list_cor_var_madrid) |>
               cor(),
             outline.col = "grey90",
             ggtheme = theme_gg,
             colors = c("#6D9EC1", "white", "#E46726"),
             tl.cex = 7) +
  labs(title = "Correlation analysis about Madrid",
       subtitle = "Data for Madrid in 2018. Variables with correlation less than\n0.15 (in abs value) respect to price (by sq meters) were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme(plot.title.position = "plot", legend.position = "right")
gg1

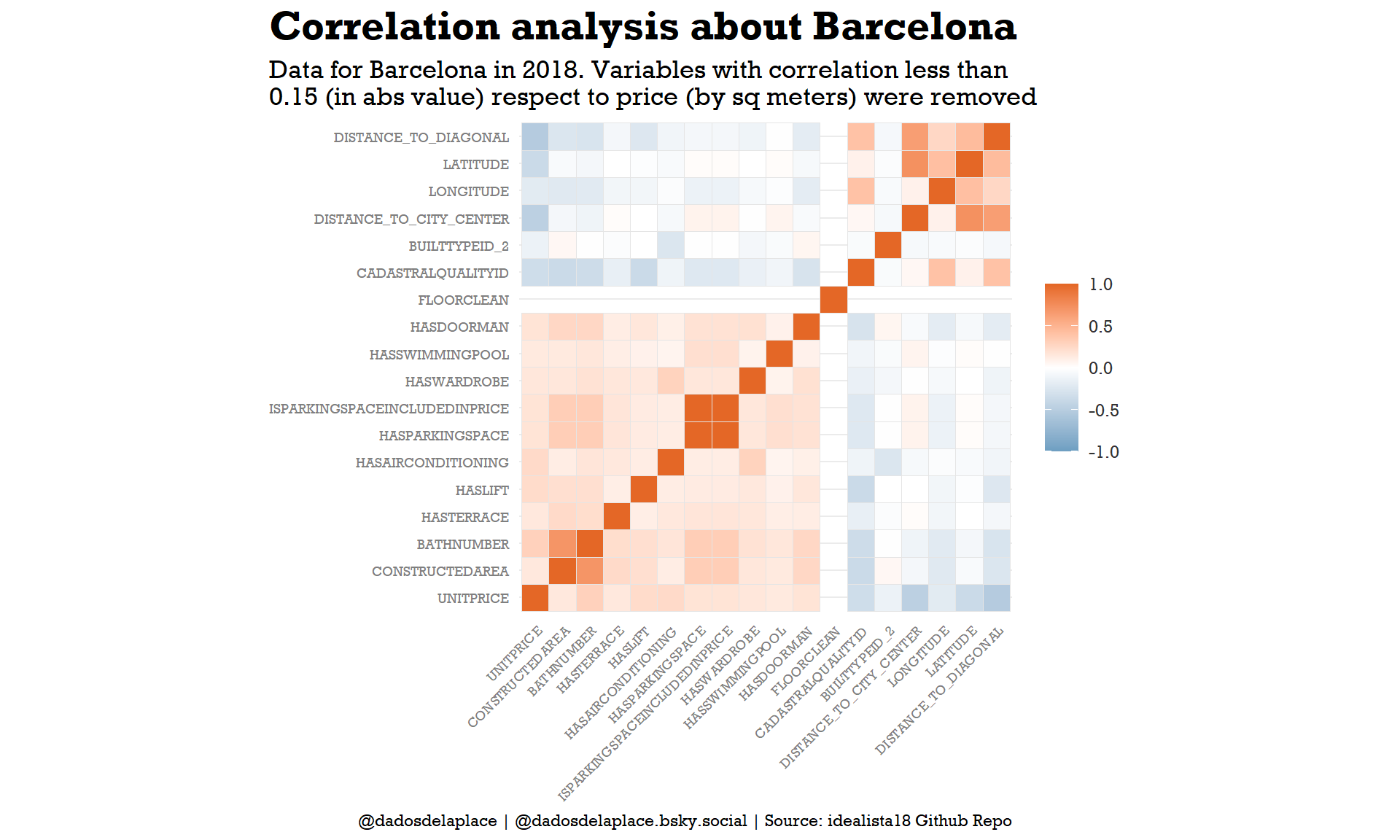

`{ggcorrplot}` package

El paquete {ggcorrplot} nos visualiza la matriz de correlaciones.

The {ggcorrplot} package visualizes the correlation matrix.

Code

list_cor_var_bcn <-
  data |>
  filter(city == "Barcelona") |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  drop_na(UNITPRICE) |>
  filter(abs(UNITPRICE) >= 0.1) |>
  pull(term)

gg2 <-
  ggcorrplot(data |>
               filter(city == "Barcelona") |>
               select(UNITPRICE, list_cor_var_bcn) |>
               cor(),
             outline.col = "grey90",
             ggtheme = theme_gg,
             colors = c("#6D9EC1", "white", "#E46726"),
             tl.cex = 7) +
  labs(title = "Correlation analysis about Barcelona",
       subtitle = "Data for Barcelona in 2018. Variables with correlation less than\n0.15 (in abs value) respect to price (by sq meters) were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme(plot.title.position = "plot", legend.position = "right")
gg2

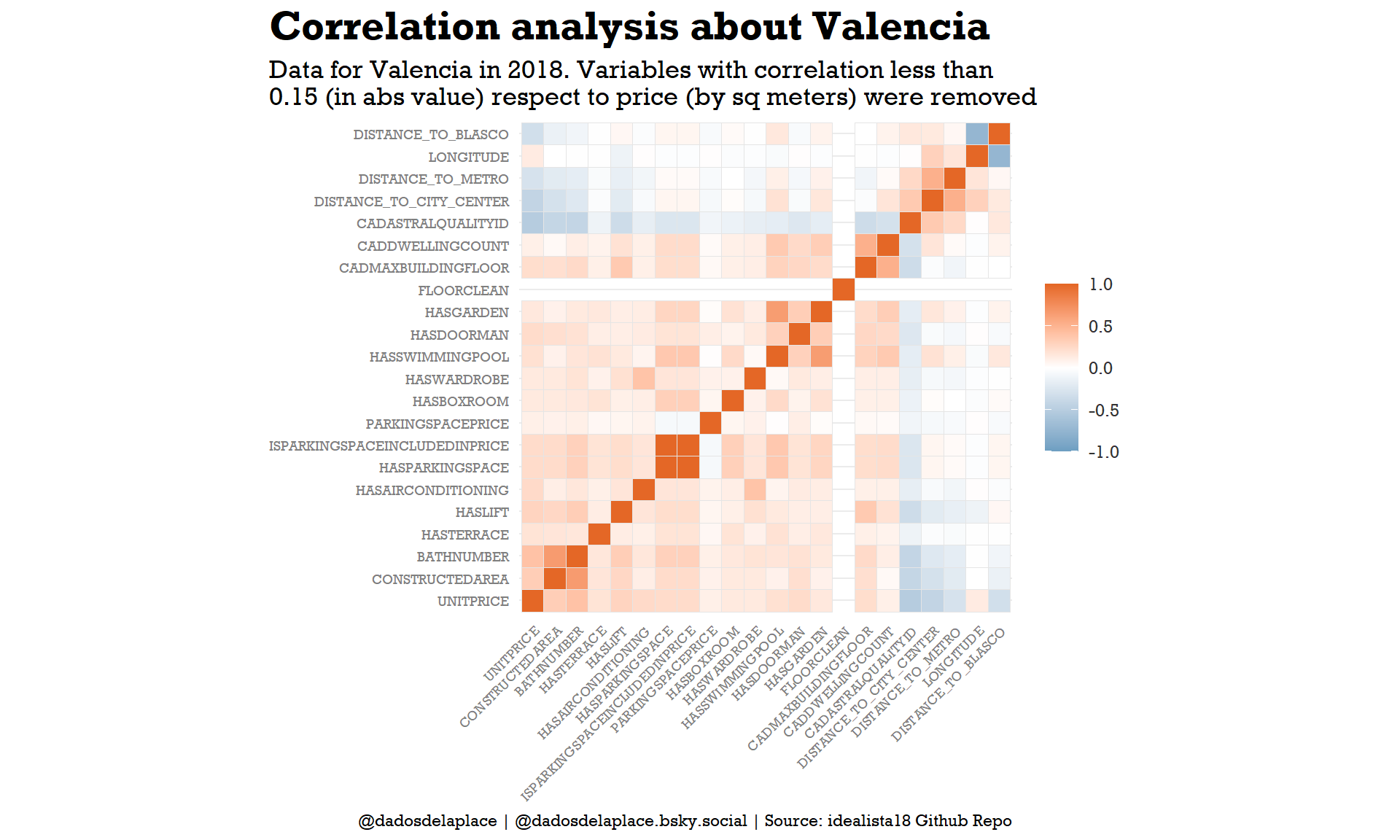

`{ggcorrplot}` package

El paquete {ggcorrplot} nos visualiza la matriz de correlaciones.

The {ggcorrplot} package visualizes the correlation matrix.

Code

list_cor_var_vlc <-
  data |>
  filter(city == "Valencia") |>
  select(where(is.numeric), -PRICE) |>
  corrr::correlate() |>
  select(term, UNITPRICE) |>
  drop_na(UNITPRICE) |>
  filter(abs(UNITPRICE) >= 0.1) |>
  pull(term)

gg3 <-
  ggcorrplot(data |>
               filter(city == "Valencia") |>
               select(UNITPRICE, list_cor_var_vlc) |>
               cor(),
             outline.col = "grey90",
             ggtheme = theme_gg,
             colors = c("#6D9EC1", "white", "#E46726"),
             tl.cex = 7) +
  labs(title = "Correlation analysis about Valencia",
       subtitle = "Data for Valencia in 2018. Variables with correlation less than\n0.15 (in abs value) respect to price (by sq meters) were removed",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo") +
  theme(plot.title.position = "plot", legend.position = "right")
gg3

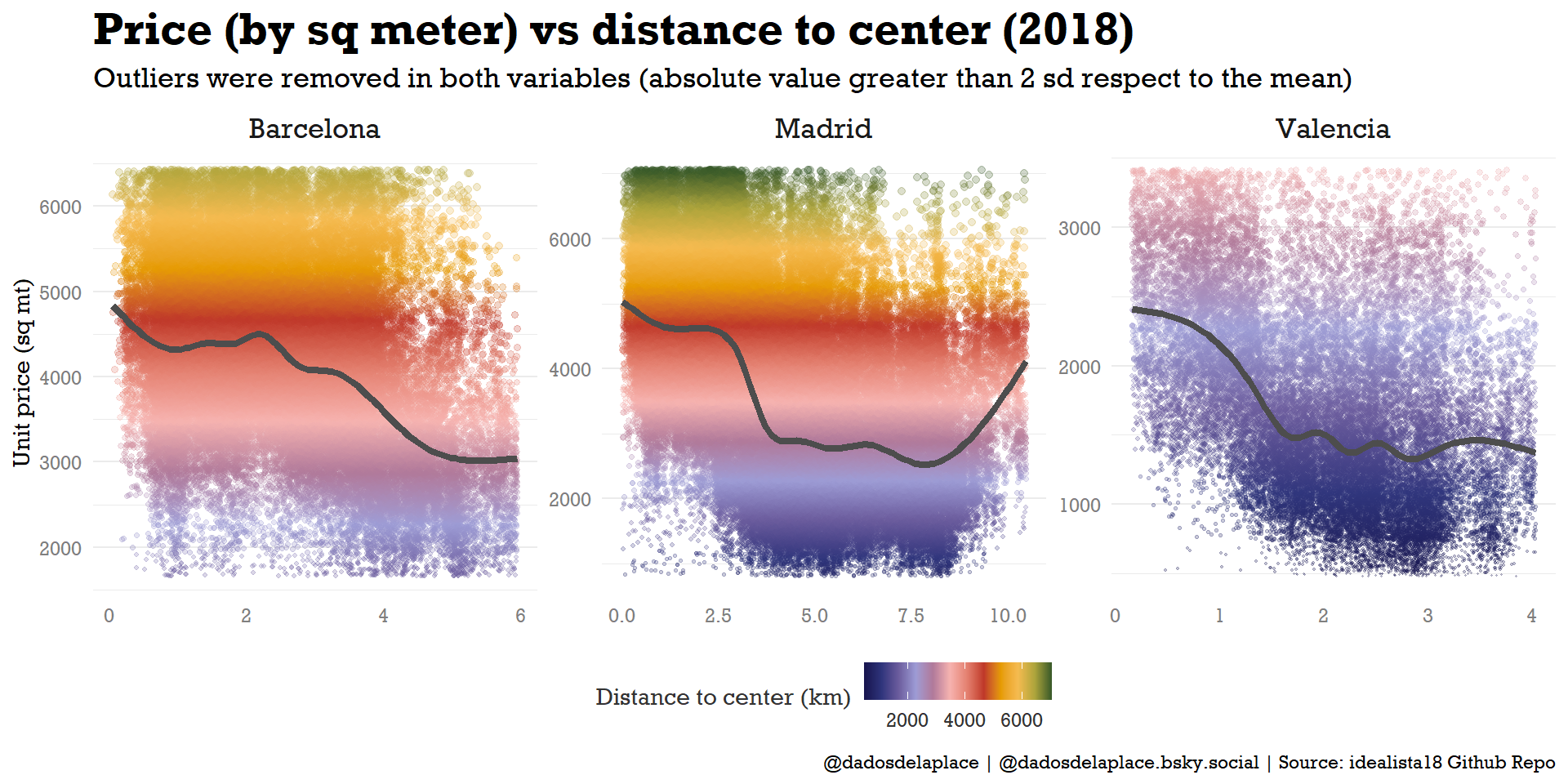

Price vs distance to center

Code

data |>
  mutate("z_scores_distance" = outliers::scores(DISTANCE_TO_CITY_CENTER),
         "z_scores_price" = outliers::scores(UNITPRICE),
         .by = city) |>
  filter(abs(z_scores_distance) <= 2 & abs(z_scores_price) <= 2) |>
  ggplot(aes(x = DISTANCE_TO_CITY_CENTER, y = UNITPRICE)) +
  geom_point(aes(size = UNITPRICE, color = UNITPRICE),
             alpha = 0.25) +
  geom_smooth(se = FALSE, color = "grey30", linewidth = 1.5) +
  MetBrewer::scale_color_met_c(palette_name = "Renoir") +
  scale_size_continuous(range = c(0.2, 1.5)) +
  facet_wrap(~city, scales = "free") +
  guides(size = "none") +
  labs(title = "Price (by sq meter) vs distance to center (2018)",
       subtitle = "Outliers were removed in both variables (absolute value greater than 2 sd respect to the mean)",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo",
       y = "Unit price (sq mt)", color = "Distance to center (km)") +
  theme_gg +
  theme(legend.title = element_text(size = 11, color = "grey20"))

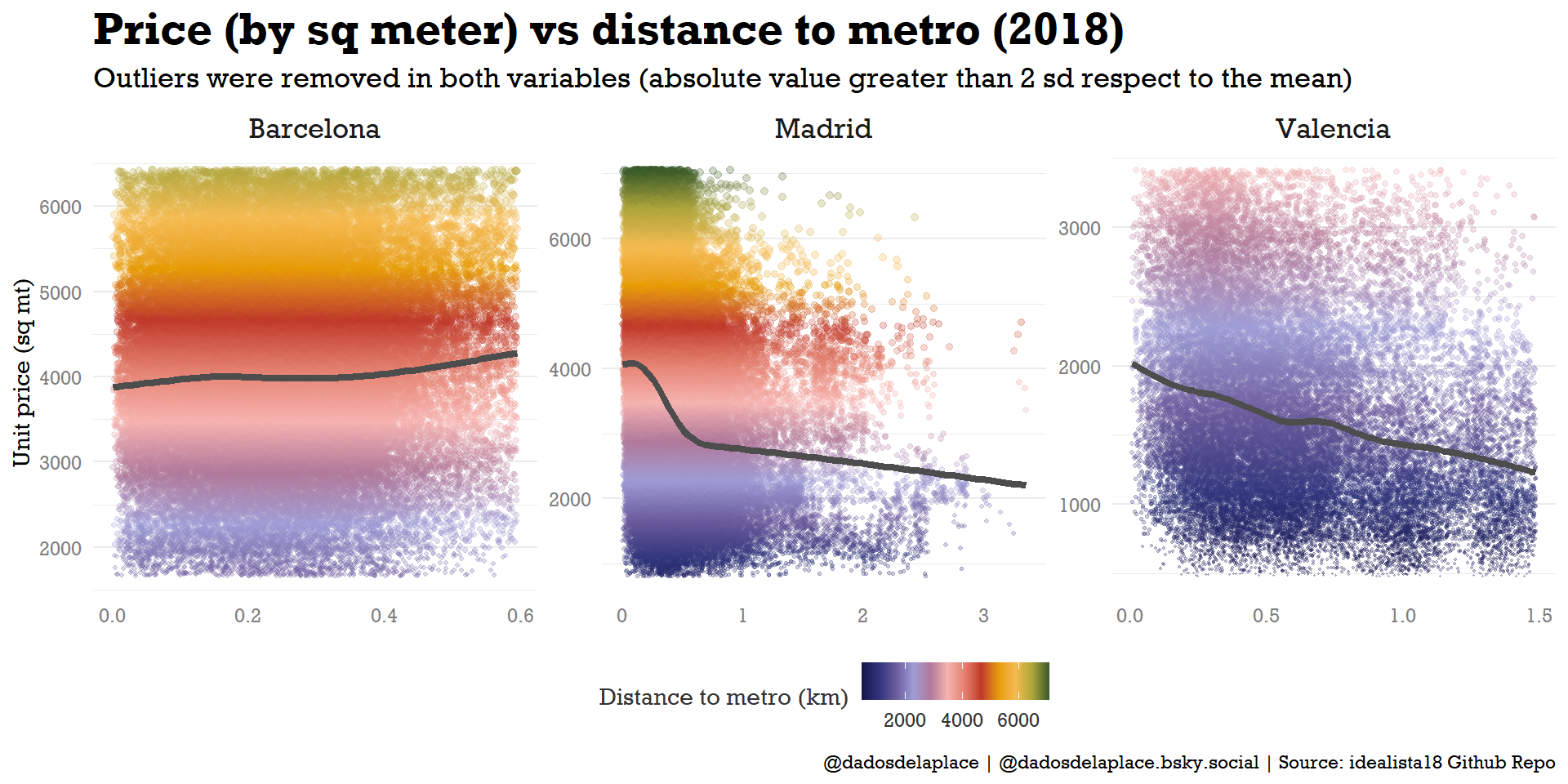

Price vs distance to metro

Code

data |>
  mutate("z_scores_distance_metro" = outliers::scores(DISTANCE_TO_METRO),
         "z_scores_price" = outliers::scores(UNITPRICE),
         .by = city) |>
  filter(abs(z_scores_distance_metro) <= 2 & abs(z_scores_price) <= 2) |>
  ggplot(aes(x = DISTANCE_TO_METRO, y = UNITPRICE)) +
  geom_point(aes(size = UNITPRICE, color = UNITPRICE),
             alpha = 0.25) +
  geom_smooth(se = FALSE, color = "grey30", linewidth = 1.5) +
  MetBrewer::scale_color_met_c(palette_name = "Renoir") +
  scale_size_continuous(range = c(0.2, 1.5)) +
  facet_wrap(~city, scales = "free") +
  guides(size = "none")  +
  labs(title = "Price (by sq meter) vs distance to metro (2018)",
       subtitle = "Outliers were removed in both variables (absolute value greater than 2 sd respect to the mean)",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo",
       y = "Unit price (sq mt)", color = "Distance to metro (km)") +
  theme_gg +
  theme(legend.title = element_text(size = 11, color = "grey20"))

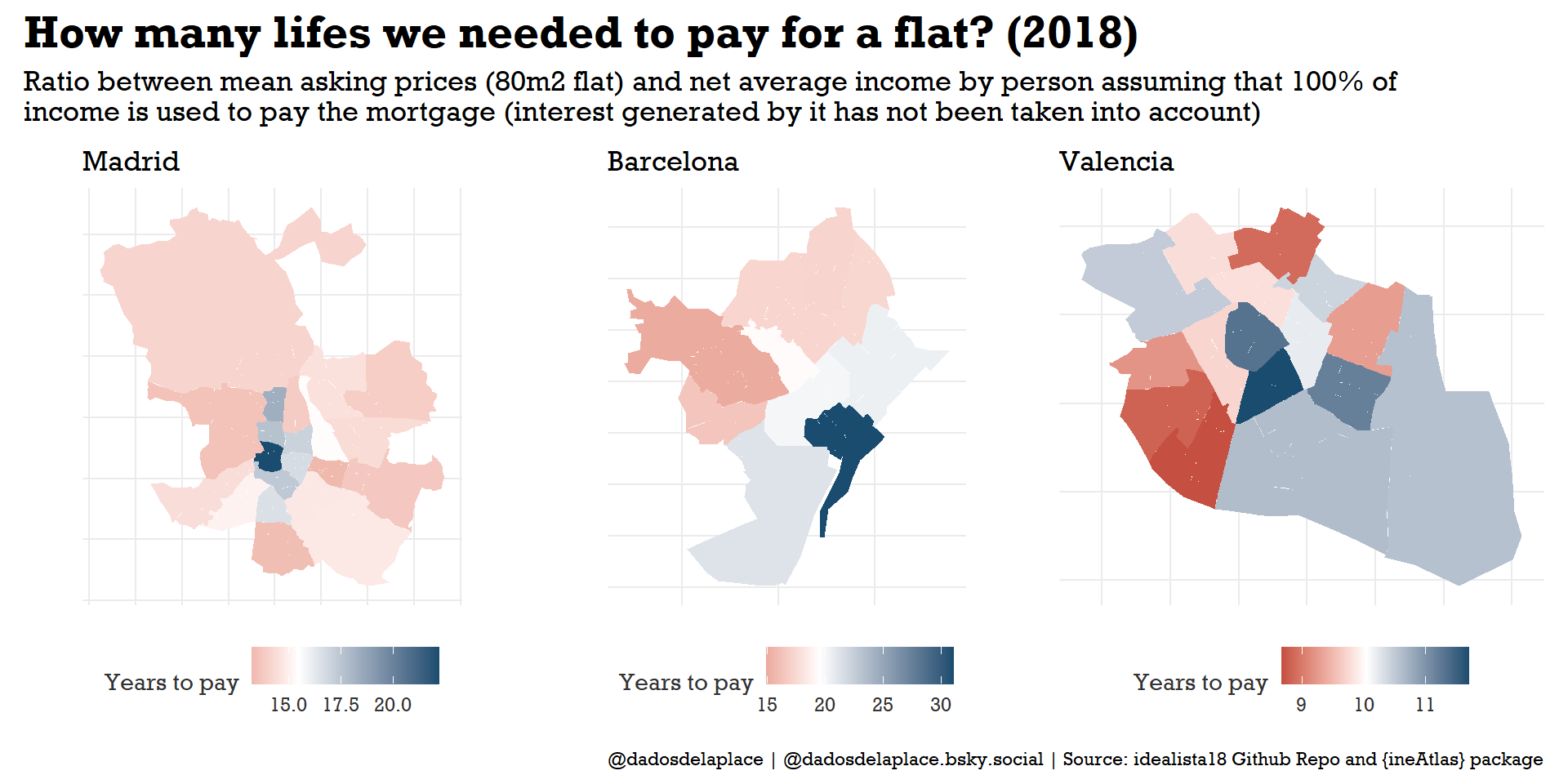

Years to pay

Cruzando con datos del INE (paquete {ineAtlas}) podemos calcular el número de años necesarios que se necesitaban para una vivienda.

By combining it with data from INE ({ineAtlas} package), we can calculate the number of years required in 2018 to pay.

Code

library(ineAtlas)
library(mapSpain)
INE_mad_district <-
  get_atlas(category = "income", level = "district") |>
  filter(year == 2018 & mun_name == "Madrid") |>
  mutate("id_district" = str_remove(district_code, "28079")) |>
  select(id_district, net_income_pc)

INE_bcn_district <-
  get_atlas(category = "income", level = "district") |>
  filter(year == 2018 & mun_name == "Barcelona") |>
  mutate("id_district" = str_remove(district_code, "08019")) |>
  select(id_district, net_income_pc)

INE_vlc_district <-
  get_atlas(category = "income", level = "district") |>
  filter(year == 2018 & mun_name == "València") |>
  mutate("id_district" = str_remove(district_code, "46250")) |>
  select(id_district, net_income_pc)


Madrid_Polygons_district <-
  Madrid_Polygons |>
    mutate(id_district =
               str_sub(str_remove(LOCATIONID, "0-EU-ES-28-07-001-079-"),
                       start = 1, end = 2)) |>
    group_by(id_district) |> summarise()
Barcelona_Polygons_district <-
  Barcelona_Polygons |>
    mutate(id_district =
               str_sub(str_remove(LOCATIONID, "0-EU-ES-08-13-001-019-"),
                       start = 1, end = 2)) |>
    group_by(id_district) |> summarise()
Valencia_Polygons_district <-
  Valencia_Polygons |>
    mutate(id_district =
               str_sub(str_remove(LOCATIONID, "0-EU-ES-46-02-002-250-"),
                       start = 1, end = 2)) |>
    group_by(id_district) |> summarise()

Madrid_sale_district <-
  Madrid_Sale |>
  st_intersection(Madrid_Polygons_district) |>
  as_tibble() |>
  summarise("mean_price" = mean(UNITPRICE), .by = id_district)

Barcelona_sale_district <-
  Barcelona_Sale |>
  st_intersection(Barcelona_Polygons_district) |>
  as_tibble() |>
  summarise("mean_price" = mean(UNITPRICE), .by = id_district)

Valencia_sale_district <-
  Valencia_Sale |>
  st_intersection(Valencia_Polygons_district) |>
  as_tibble() |>
  summarise("mean_price" = mean(UNITPRICE), .by = id_district)

Madrid_data <-
  Madrid_Polygons_district |>
  left_join(Madrid_sale_district |>
              inner_join(INE_mad_district, by = "id_district") |>
              mutate("lifes" = mean_price * 80 / net_income_pc),
            by = "id_district")
Barcelona_data <-
  Barcelona_Polygons_district |>
  left_join(Barcelona_sale_district |>
              inner_join(INE_bcn_district, by = "id_district") |>
              mutate("lifes" = mean_price * 80 / net_income_pc),
            by = "id_district")
Valencia_data <-
  Valencia_Polygons_district |>
  left_join(Valencia_sale_district |>
              inner_join(INE_vlc_district, by = "id_district") |>
              mutate("lifes" = mean_price * 80 / net_income_pc),
            by = "id_district")

map_1 <- ggplot(Madrid_data) +
  geom_sf(aes(fill = lifes), color = NA) +
  scale_fill_gradient2(low = "#b01f1d", mid = "white", high = "#1a4c6f",
                       midpoint = mean(Madrid_data$lifes),
                       na.value = NA) +
  labs(x = NULL, y = NULL, fill = "Years to pay",
       subtitle = "Madrid") +
  theme_gg +
  theme(axis.text.x = element_blank(), axis.text.y = element_blank(),
        legend.title = element_text(size = 11, color = "grey20"))

map_2 <- ggplot(Barcelona_data) +
  geom_sf(aes(fill = lifes), color = NA) +
  scale_fill_gradient2(low = "#b01f1d", mid = "white", high = "#1a4c6f",
                       midpoint = mean(Barcelona_data$lifes),
                       na.value = NA) +
  labs(x = NULL, y = NULL, fill = "Years to pay",
       subtitle = "Barcelona") +
  theme_gg +
  theme(axis.text.x = element_blank(), axis.text.y = element_blank(),
        legend.title = element_text(size = 11, color = "grey20"))

map_3 <- ggplot(Valencia_data) +
  geom_sf(aes(fill = lifes), color = NA) +
  scale_fill_gradient2(low = "#b01f1d", mid = "white", high = "#1a4c6f",
                       midpoint = mean(Valencia_data$lifes),
                       na.value = NA) +
  labs(x = NULL, y = NULL, fill = "Years to pay",
       subtitle = "Valencia") +
  theme_gg +
  theme(axis.text.x = element_blank(), axis.text.y = element_blank(),
        legend.title = element_text(size = 11, color = "grey20"))

library(patchwork)
(map_1 + map_2 + map_3) &
  plot_annotation(title = "How many lifes we needed to pay for a flat? (2018)",
                  subtitle = "Ratio between mean asking prices (80m2 flat) and net average income by person assuming that 100% of \nincome is used to pay the mortgage (interest generated by it has not been taken into account)",
                  caption = "@dadosdelaplace | @dadosdelaplace.bsky.social | Source: idealista18 Github Repo and {ineAtlas} package",
                  theme = theme_gg)

In summary

La combinación de {idealista18}, {ineAtlas} y {mapSpain} nos permite realizar análisis simple del mercado de la vivienda en España

The combination of {idealista18}, {ineAtlas}, and {mapSpain} allows us to perform a simple analysis of the housing market in Spain.

{idealista18} repo and {ineAtlas} package

Housing crisis in Spain

idealista18 repo

idealista18 repo

idealista18 repo

{corrr} package

{corrr} package

{corrr} package

{ggcorrplot} package

{ggcorrplot} package

{ggcorrplot} package

Price vs distance to center

Price vs distance to metro

Years to pay

In summary

`{idealista18}` repo and `{ineAtlas}` package

`{corrr}` package

`{corrr}` package

`{corrr}` package

`{ggcorrplot}` package

`{ggcorrplot}` package

`{ggcorrplot}` package
